Two Stage Decision Analysis with LPs

MGMT 306

Alex L. Wang

Purdue University

Dorothy’s farm with known yields

Problem Description

  • Dorothy grows corn and sugar beets on her 320 acre farm
  • Dorothy needs 240T of corn for cattle feed
  • Leftover corn can be sold at $150/T
  • Instead of growing the corn herself, she can buy corn for $210/T
  • Beets sell for $36/T up to 5500T
  • Planting costs are $230/acre and $260/acre for corn, beets respectively
  • For now, assume that each acre of corn yields 3T of corn and each acre of beets yields 20T of beets
  • How much of each crop should Dorothy plant / sell / buy to maximize profit?

LP Formulation

  • Variables \[ \begin{aligned} &p_C, p_B &&\text{acres of corn and beets to plant}\\ &s_C, s_B &&\text{tonnes of corn and beets to sell}\\ &b_C &&\text{tonnes of corn to buy} \end{aligned} \]

  • Objective \[ \max \quad 150s_C + 36 s_B -230 p_C - 260 p_B -210 b_C \qquad\text{(net profit)} \]

LP Formulation continued

  • Constraints \[ \begin{aligned} &p_C+ p_B\leq 320 &&\text{(land)}\\ &-3p_C+s_C-b_C\leq -240 &&\text{(corn yield)}\\ &-20p_B + s_B\leq 0 &&\text{(beet yield)}\\ & s_B\leq 5500 && \text{(beet sales)}\\ & \text{all variables} \geq 0 \end{aligned} \]

    Explanation: The corn yield constraints says that we need to plant and buy enough corn to cover the amount we plan to sell plus the 240 required for cattle feed: \(240 + s_C \leq 3 p_C + b_C\)

    The beet yield constraint is similar

Excel model

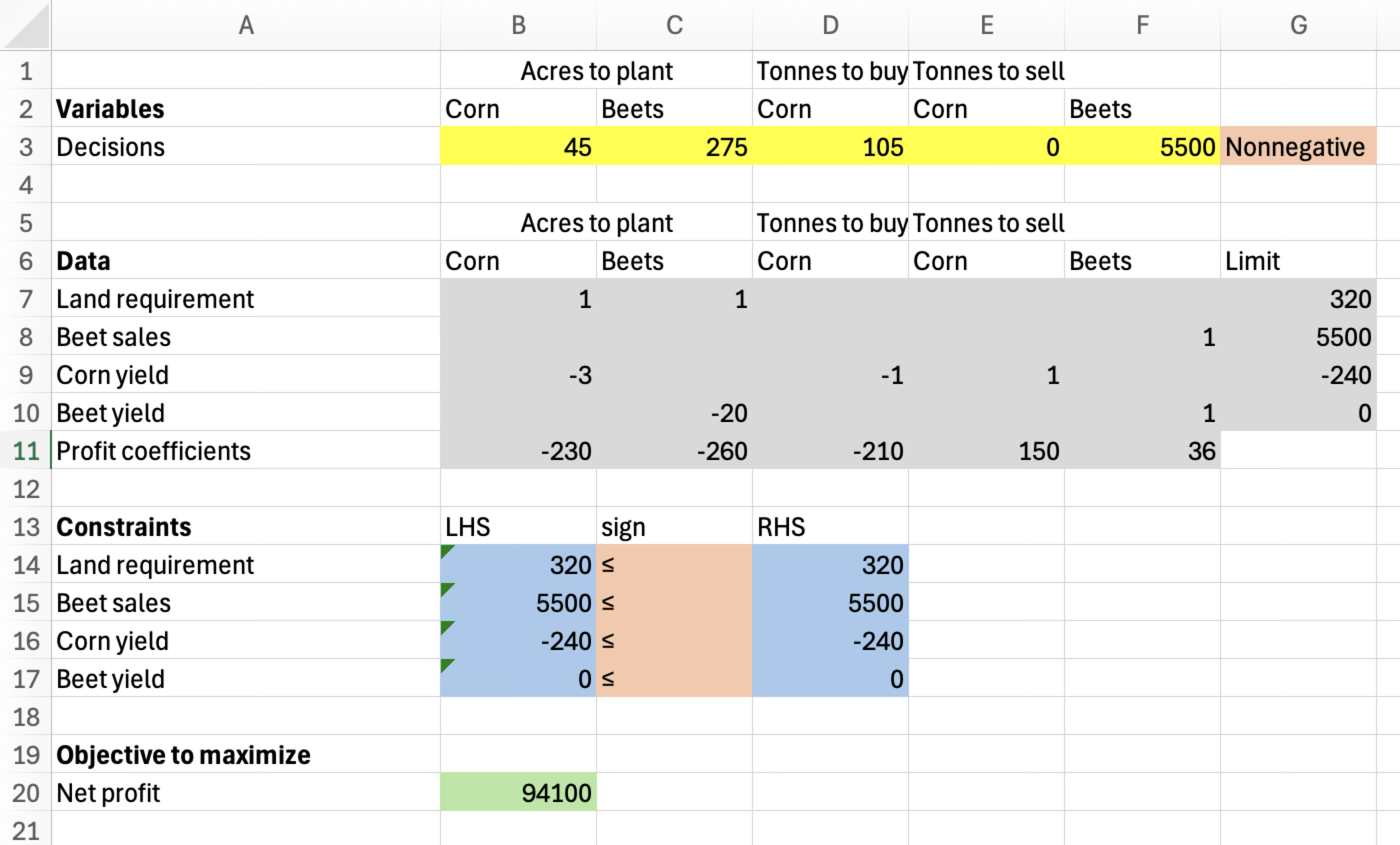

Excel model for Dorothy's farm with known yields

Dorothy’s farm with uncertain yields

Problem Description

  • Yield actually varies from year to year due to weather conditions
  • There are three scenarios
Corn and beet yield scenarios
Scenario Corn yield (T/acre) Beet yield (T/acre) Probability
1. Good weather 3.6 24 1/3
2. Normal weather 3 20 1/3
3. Bad weather 2.4 16 1/3

Sequence of decisions

  • Decision making timeline:
    • Stage 1: Dorothy plants crops (makes choices for \(p_C\), \(p_B\))
    • Yield is realized (one of the three scenarios is revealed)
    • Stage 2: After observing the yield, Dorothy buys deficient corn / sells surplus corn
  • What should Dorothy do to maximize expected profit?

LP Model Variables

  • Previously, we had five variables: \(p_C\), \(p_B\), \(s_C\), \(s_B\), \(b_C\)
  • We will keep the stage 1 variables: \(p_C\), \(p_B\)
  • We will replace the stage 2 variables with one copy of the stage 2 variables for each possible scenario: \[\begin{aligned} &s_{C,i}, s_{B,i}&&\text{for $i=1,2,3$}&& \text{t. of corn, beets to sell in scenario $i$}\\ &b_{C,i}&&\text{for $i=1,2,3$}&& \text{t. of corn, beets to buy in scenario $i$} \end{aligned}\] This represents how Dorothy plans to react in stage 2 to the possible weather and yield scenarios. For example, \(s_{C,1}\) is the tonnes of corn Dorothy plans to sell if there is good weather

LP Model Objective

  • Expected net profit: \[\begin{aligned} \max \quad& (1/3)\times\left(150 s_{C,1} + 36 s_{B,1} - 230 p_C - 260 p_B - 210 b_{C,1}\right)\\ +&(1/3)\times\left(150 s_{C,2} + 36 s_{B,2} - 230 p_C - 260 p_B - 210 b_{C,2}\right)\\ +&(1/3)\times\left(150 s_{C,3} + 36 s_{B,3} - 230 p_C - 260 p_B - 210 b_{C,3}\right) \end{aligned}\]

    This is the average of the net profits in each scenario

LP Model Constraints

  • Land requirement \[ p_C + p_B \leq 320\]
  • Beet sales limit \[ s_{B,i} \leq 5500\quad\text{for all }i=1,2,3\]
  • Nonnegativity on all varialbes

LP Model Constraints (continued)

  • Corn yield: \[\begin{aligned} &-3.6 p_C - b_{C,1} + s_{C,1} \leq - 240&&\text{(corn yield-1)}\\ &-3 p_C - b_{C,2} + s_{C,2} \leq - 240&&\text{(corn yield-2)}\\ &-2.4 p_C - b_{C,3} + s_{C,3} \leq - 240&&\text{(corn yield-3)} \end{aligned}\]

  • Beet yield: \[\begin{aligned} &-24 p_B +s_{B,1} \leq 0&&\text{(beet yield-1)}\\ &-20 p_B +s_{B,2} \leq 0&&\text{(beet yield-2)}\\ &-16 p_B + s_{B,3} \leq 0&&\text{(beet yield-3)} \end{aligned}\]

Excel model

  • Split variables into stage 1 and stage 2
  • Repeat stage 2 variables for each scenario
  • Repeat constraint and objective calculations once for each scenario (with updated yield parameters)

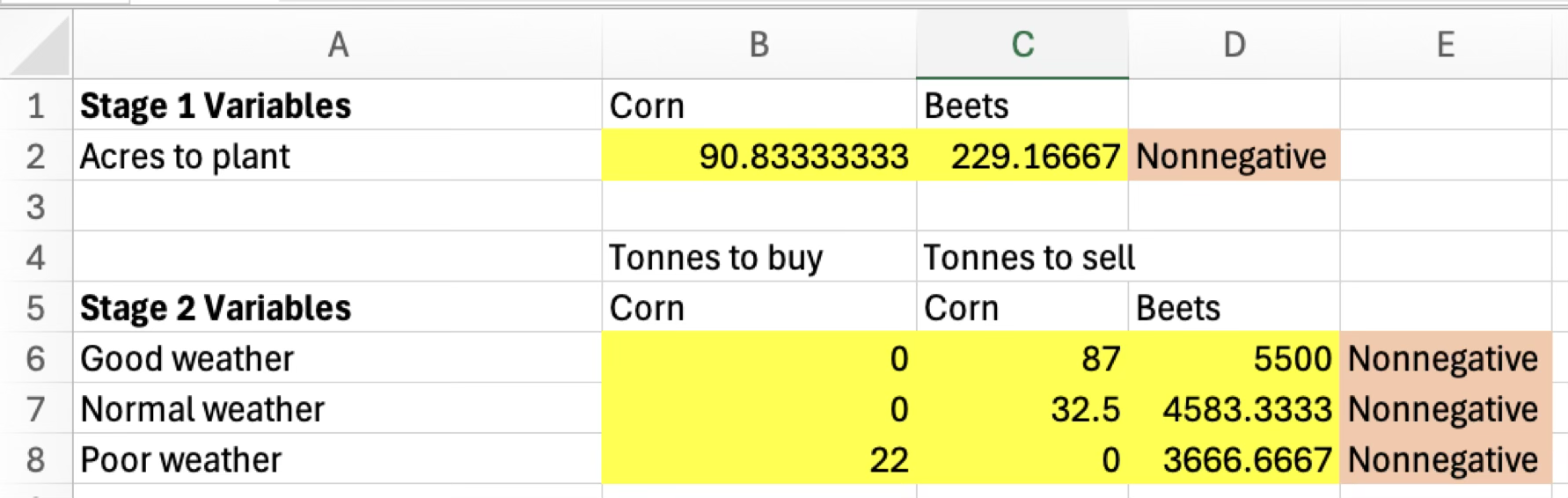

Stage 1 and Stage 2 variables

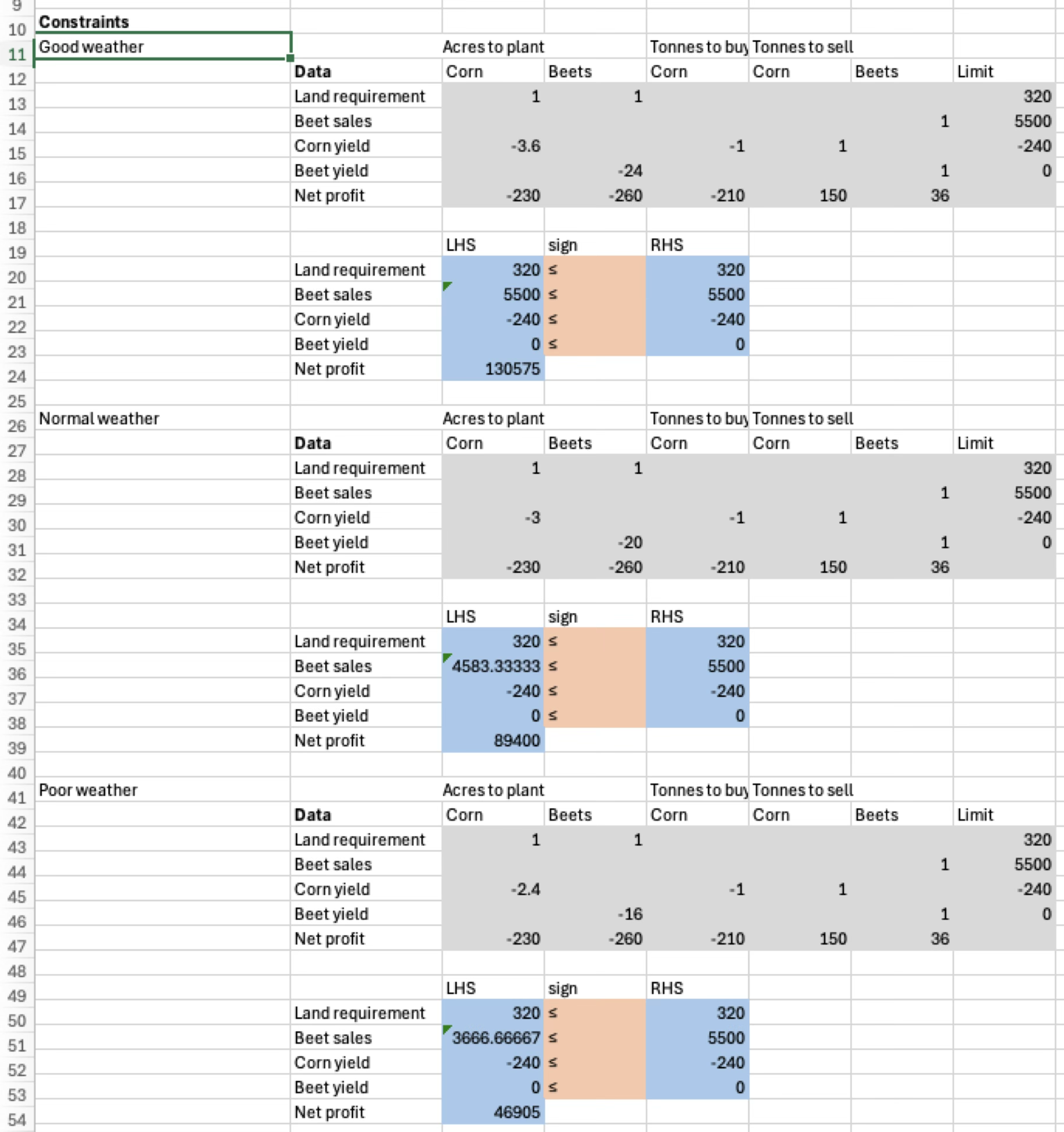

Data table, cosntraints, profit for each scenario

Excel model (continued)

  • Set objective to the average of the three profit values
  • The Expected Value (EV) is $88,960

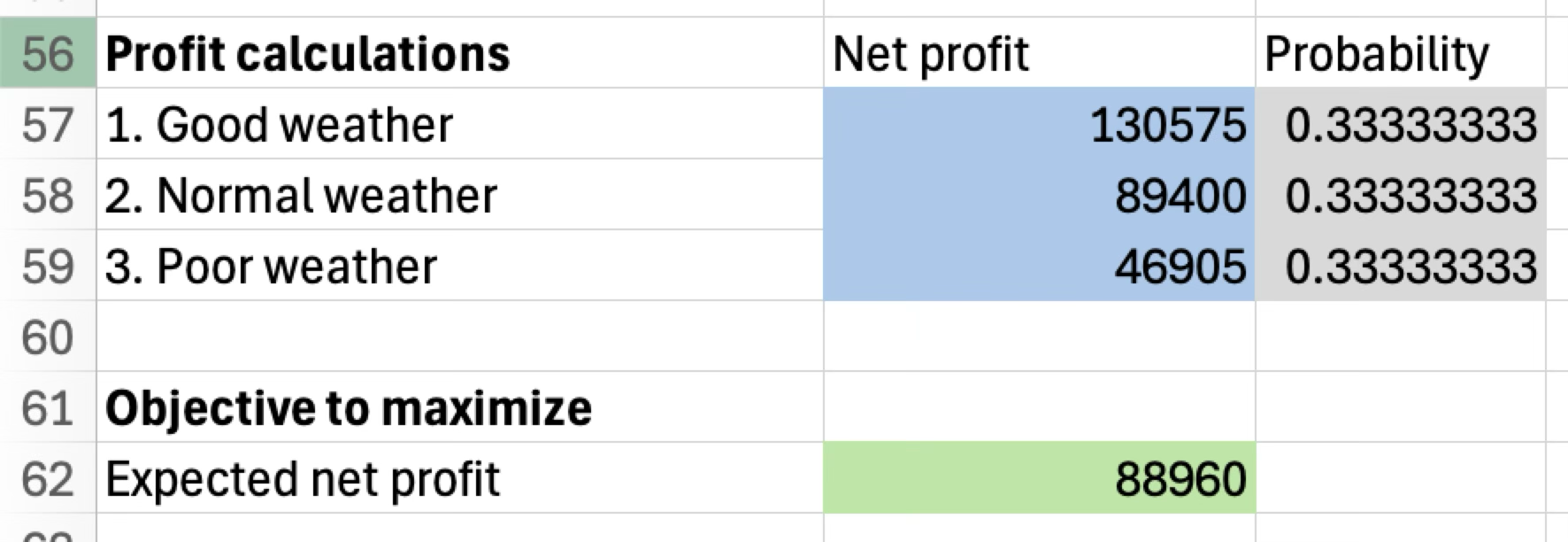

Computation of expected profit

Expected Value of Perfect Information (EVPI)

  • Recall that EVPI is the difference between Expected Value with Perfect Information (EVwPI) and the expected value (EV)
  • We can use the same spreadsheet with different probabilities to compute the EVwPI
    • Scenario 1: $130,575
    • Scenario 2: $94,100
    • Scenario 3: $50,720
  • The EVwPI is \(\text{EVwPI} = \frac{1}{3}\cdot 130575 + \frac{1}{3} \cdot 94100 + \frac{1}{3}50720 =91789.33\)
  • The EVPI is \(\text{EVPI} = \text{EVwPI} - \text{EV} = 2829.33\)

Practice Problems

Lakeshore Outdoor Gear

  • Lakeshore Outdoor Gear, an outdoor equipment retailer, must decide how many camping tents to stock before the summer season starts
  • The demand for tents is uncertain, but the marketing department reports three demand scenarios
  • If the demand exceeds the initial inventory, Lakeshore Outdoor Gear may fulfill additional orders by purchasing emergency inventory at a “last-minute” stocking cost
  • If the demand is lower than their initial inventory, then at the end of the season, Lakeshore Outdoor Gear will put the remaining inventory on sale.
  • All relevant data is shown on the next page

Lakeshore Outdoor Gear (Continued)

Scenario In-season demand Sale demand
Scenario 1 200 40
Scenario 2 150 40
Scenario 3 100 40

Timing Cost
Initial stocking cost $50/tent
Last-minute stocking cost $75/tent

Timing Revenue
In-season (Normal) price $80/tent
End-of-season (Sale) price $40/tent

Lakeshore Outdoor Gears Instructions

  1. Write an LP model to maximize profit assuming Scenario 1
  2. Implement the LP model from Part a. in the same Excel sheet and use it to compute the PWPI
  3. Duplicate the previous sheet. Modify it assuming Scenario 2
  4. Duplicate the previous sheet. Modify it assuming Scenario 3
  5. In a new sheet, write a two-stage LP model to maximize expected profit
  6. Implement the LP model from part e. in the same Excel sheet and use it to compute the EV
  7. Compute the EVWPI and EVPI

Whisked Away Bakery

  • Whisked Away Bakery is an order-only bakery selling chocolate cakes
  • Avery, the manager of Whisked Away Bakery, plans each day’s operations three days out
  • Today (a Monday), Avery must:
    • Order fresh butter and eggs from their supplier at a cost of $3.50/lb butter and $0.15/egg
    • Schedule Thursday’s hours for the bakers at a rate of $15/hour up to a maximum of 12 hours
  • Each cake requires 1/3 hours of labor, 1/4 lb of butter, and 4 eggs
  • The remaining shelf-stable ingredients cost $4.15 per cake
  • Each cake sells for $25.00

Whisked Away Bakery (continued)

  • Avery believes there are two possible scenarios for the number of orders they will receive
Scenario Number of orders Probability
1. High demand 50 50%
2. Low demand 30 50%
  • After the order form closes on Wednesday night, Avery may then
    • Purchase additional butter and eggs at the retail price: $6.00/lb butter and $0.30/egg
    • Schedule last-minute staff at a rate of $20/hour
  • Whisked Away Bakery must fulfill all orders they receive
  • How can Avery maximize the expected profit?

Whisked Away Bakery Instructions

  1. Write an LP model to maximize profit assuming Scenario 1
  2. Implement the LP model from Part a. in the same Excel sheet and use it to compute the PWPI
  3. Duplicate the previous sheet. Modify it assuming Scenario 2
  4. In a new sheet, write a two-stage LP model to maximize expected profit
  5. Implement the LP model from part d. in the same Excel sheet and use it to compute the EV
  6. Compute the EVWPI and EVPI
